Pluto, SDR C.3.1xx & Kuhne MKU LNC 10 QO-100 downconverter

[s53k]

hi,

Is there someone, who has Pluto, SDR C.3.1xx & Kuhne MKU LNC 10 QO-100 downconverter together ?

[nturl]https://shop.kuhne-electronic.com/kuhne ... ?card=1875[/nturl]

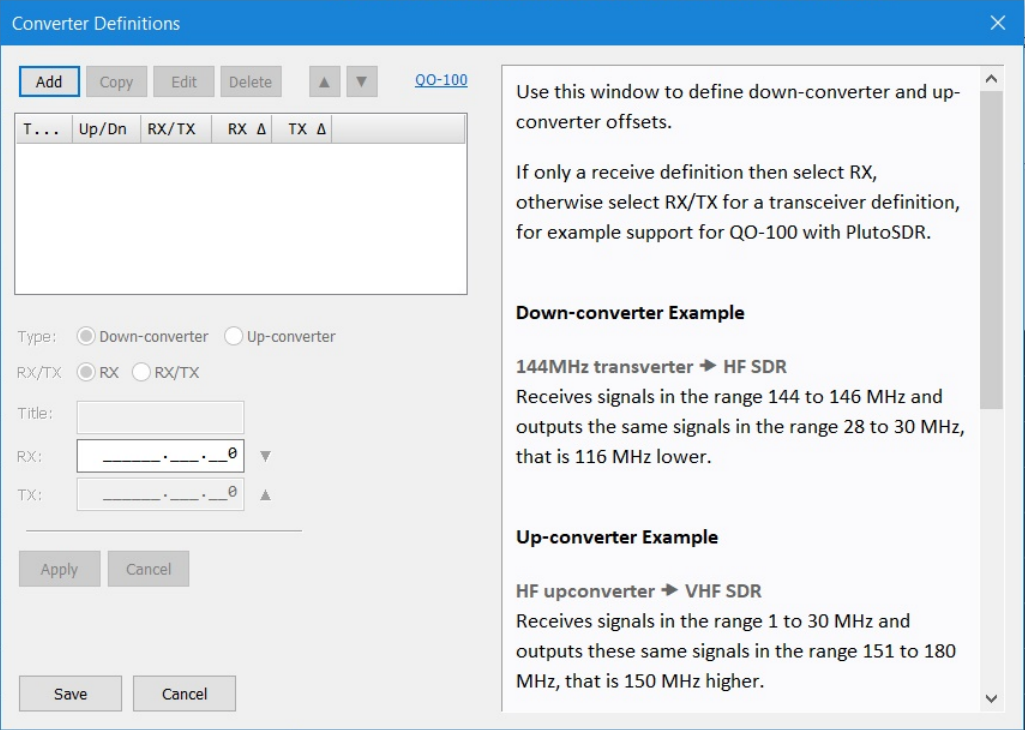

Question is, whats the RX and TX freq for Kuhne MKU LNC 10 QO-100 downconverter are ? Picture attached ...

Thanks for help

Simon

[jdow]

"LO frequency can be switched between 10056 MHz (433 MHz IF for SSB operation) ..."
What's the difference between 10056 and 433 MHz? I'd try that first.

{^_^}

[s53k]

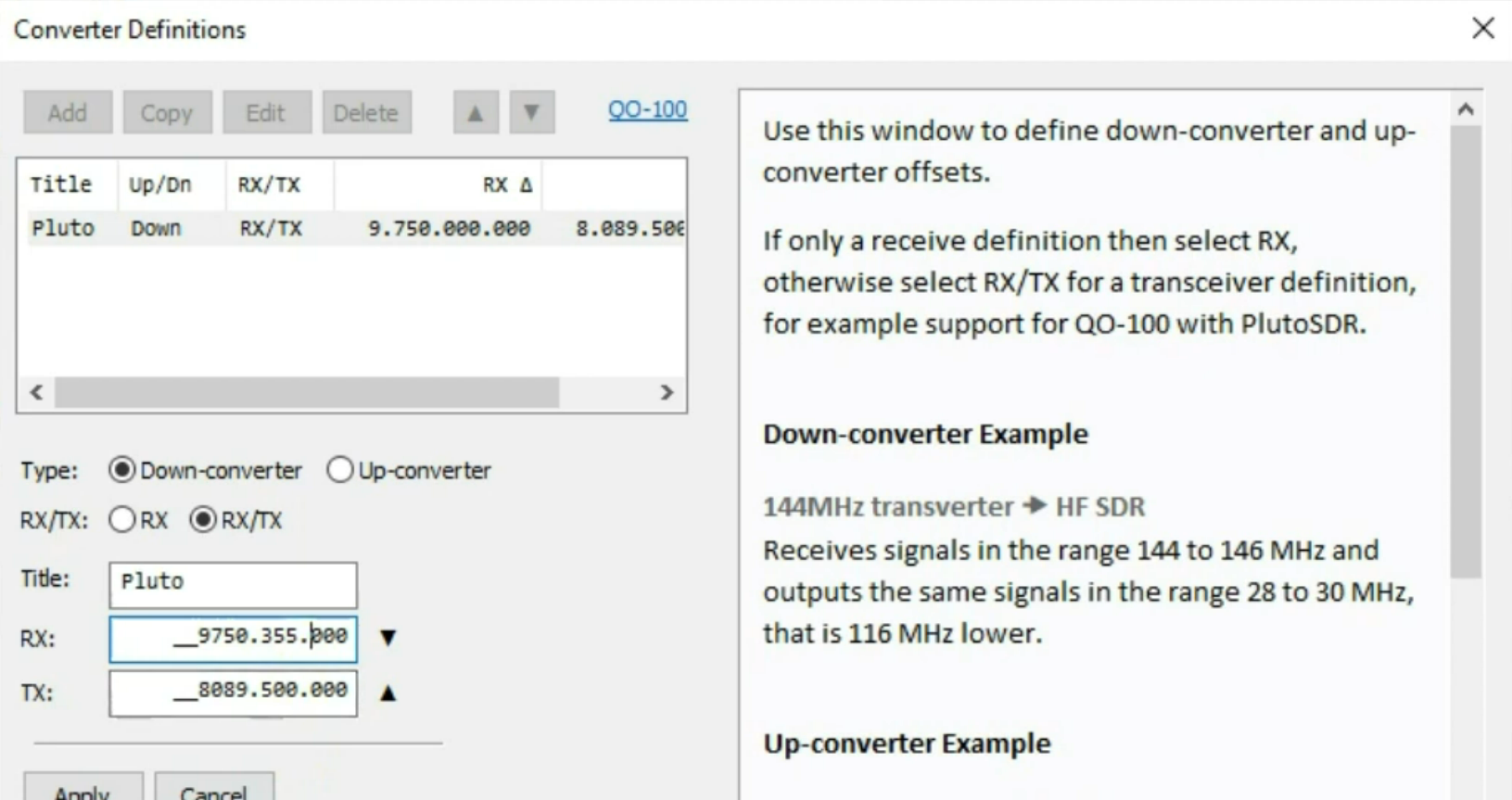

10489-433 = 10056, what is ok for LO, but question was, whats we need to put on TX and RX window. For "normal" LNB is as show in the picture .. Is that the same setting for Kuhne MKU LNC 10 QO-100 downconverter ?

[jdow]

If the Kuhne MKU LNC does not include an RF up converter then tick RX only. Pluto can go directly to the correct TX frequency itself, as I understand it.

{^_^}

[s53k]

roger... will do that, when EQ comes at QTH ... Thanks for your answers.

[dg9bfc_sigi]

Simon
and to have rx and tx in sync you need to use up and downconverter settings!!
for tx you set 8089.5 mhz!!

[s53k]

hello Sigi,

Im not that far to make a TX yet But of course, thanks for your kindest answer about.
Will write it in TX window.

GL!
